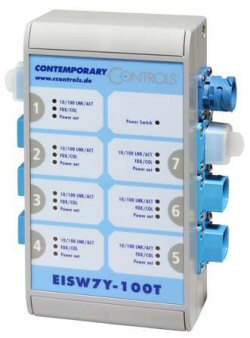

CTRLink Managed/Unmanaged Switch IP67 rated EISW Series

The new CTRLink EISW Industrial Ethernet IP67 rated switch is now available! The EISW can operate in rough, dirty and non safe industrial areas and supports Power-over-Ethernet (IEEE802.3af) to transmit both data and power to connected devices.

To comply to the different requirements, the EISW is offered in 4 different configurations:
• EISW 7 -100T Plug and Play / No Power Out
• EISW 7Y-100T Plug and Play / Power Out
• EISW 7M-100T SNMP-Managed / No Power Out
• EISW 7YM-100T SNMP-Managed / Power Out

The EISW can operate in an environment temperature range from -40°C to +85°C. The IP67 guarantees a total protection against dirt, dust and water.

Technical Details:
• Datarate: 10BASE T/100BASE TX
• Autonegotiated data rate and Flowcontrol
• Broadcast storm control
• Solid rugged case of aluminum (IP 67)
• Input Voltage: 24V DC
• Output Voltage: 24V DC/ max 1 A per port
• Input Power: 10W
• Operating Temperature: -40°C to +85°C
• Ports: RJ 45 copper with Y-Con IP67
• Din-rail mounting on request / easy panel installation
• Redundancy: Spanning tree, redudant power supply scheme
• CE marked, UL508 listed
• IP 69k on request

The M-versions of EISW contain SNMP managemet capabilities, configurable via the network or the RS232 port.
